Resaltar
Otis elevator brake microswitch
,Z-15GDA55-B5V elevator switch
,Otis elevator spare parts
-
MarcaOtis
-
DescripciónInterruptor del elevador
-
ModeloZ-15GDA55-B5V
-
Moq1 por ciento
-
TransporteTNT, UPS, DHL, FedEx, Air, Sea
-
PaquetesCarton, estuche de madera, paleta, etc.
-
Tiempo de entregaNormalmente 2-3 días hábiles después del pago
-
GarantíaUn año
-
Método de pagoCompany Bank, Western Union, Alibaba, PayPal, etc.
-
Nombre de la marcaOTIS
-
Número de modeloZ-15GDA55-B5V
-
Cantidad de orden mínima1
-
Tiempo de entrega2-3 días hábiles
-
Condiciones de pagoT/T, Western Union, Moneygram

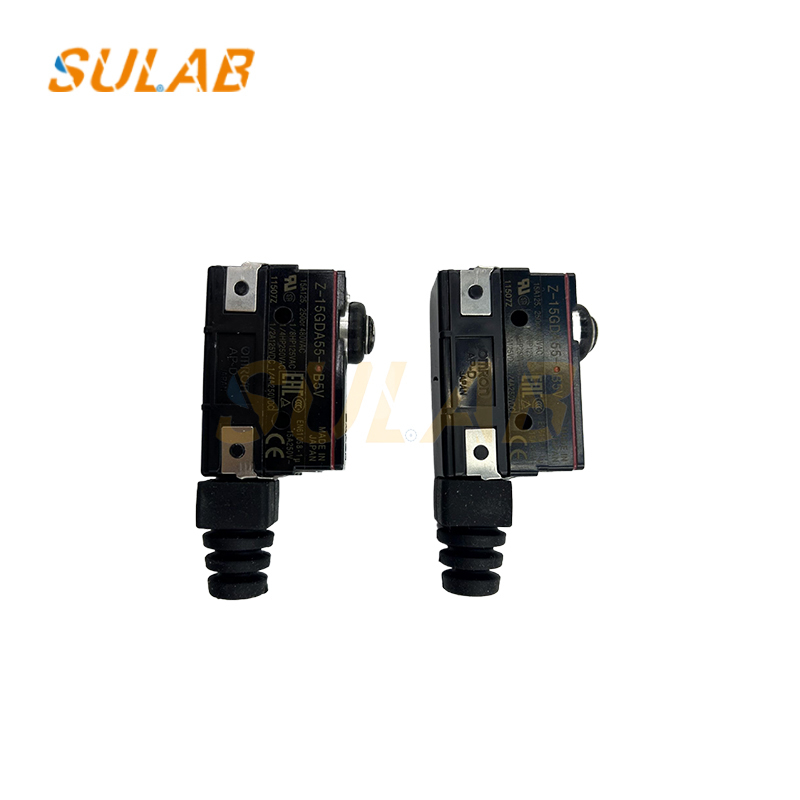

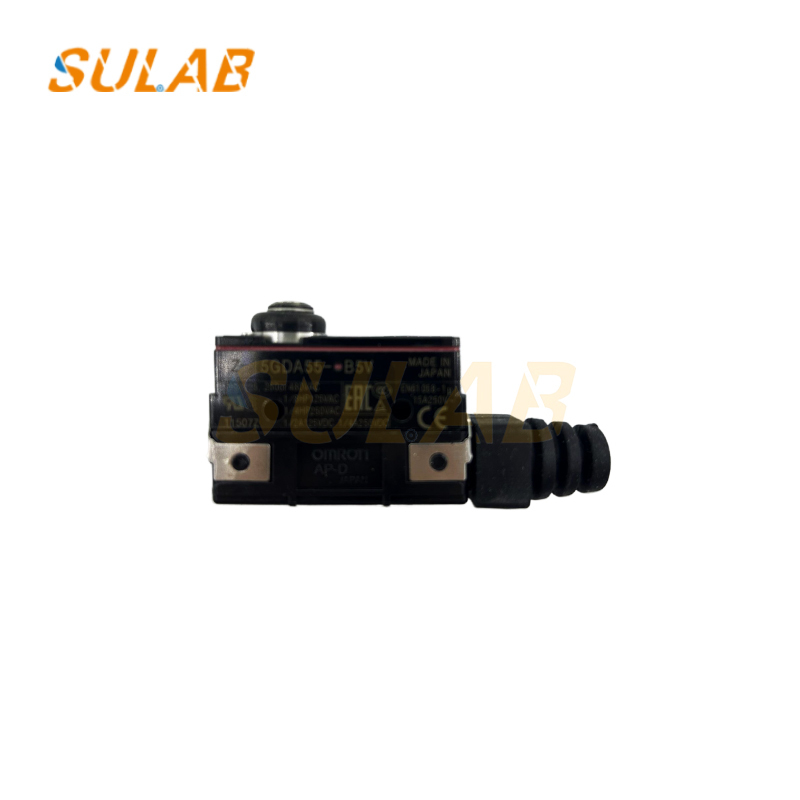

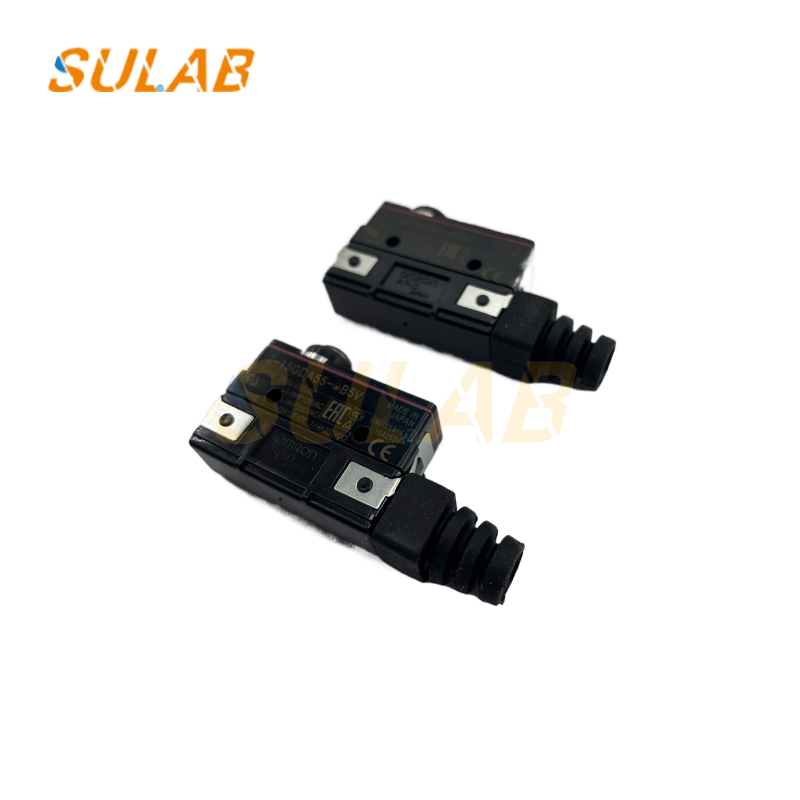

OTIS Elevator Brake Microswitch Z-15GDA55-B5V for Otis Elevators
Otis Elevator Brake Microswitch Z-15GDA55-B5V Xizi Brake RZ-15GD(T)-B3
Product Overview
The Otis Z-15GDA55-B5V is a high-quality brake microswitch specifically designed for Otis elevator systems. Manufactured by Omron, this reliable component features a spring short button actuator and durable construction for long-lasting performance in elevator applications.
Key Specifications
| Attribute | Value |
|---|---|
| Brand | OTIS |
| Description | Elevator switch |
| Model | Z-15GDA55-B5V |
| MOQ | 1PC |
| Transportion | TNT, UPS, DHL, Fedex, Air, Sea |
| Packages | Carton, Wooden case, Pallet etc |
| Delivery Time | Normally 2-3 working days after payment |
| Warranty | One year |
| Payment Method | Company Bank, Western union, alibaba, Paypal etc |
Technical Details
- Actuator: Spring short button type
- Contact Configuration: 1C (Single Circuit)
- Terminals: Screw-fastened with drip-proof protection cover
- Rated Current: 15A
- AC Ratings: 15A at 125V, 15A at 250V, 10A at 500V
- DC Ratings: 15A at 8V, 15A at 14V, 6A at 30V
- Protection: IP62 equivalent (terminal part excluded)
- Temperature Range: -15℃ to 80℃ (non-icing conditions)
- Humidity Range: 35% to 95% RH
- Electrical Durability: >500,000 operations
- Mechanical Durability: >10,000,000 operations
Applications
This microswitch is specifically designed for brake systems in Otis elevator installations, providing reliable switching performance in critical safety applications.
