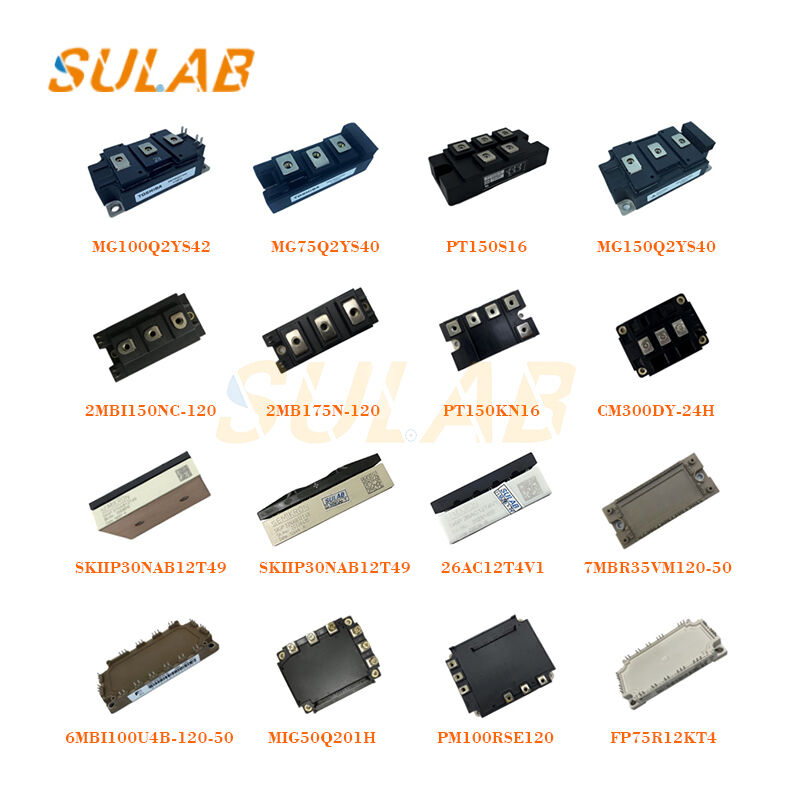

Mitsubishi Electric IGBT Power Module CM300DY-24NF for Elevators with 1200V VCES and 300A Continuous Collector Current
-
Resaltar
1200V VCES IGBT Power Module
,300A Continuous Collector Current Elevator Spare Parts
,Dual Half-Bridge Topology Mitsubishi Electric Module
-
MarcaSigma
-
DescripciónTabla de ascensor
-
ModeloSe trata de un sistema de control de las emisiones de gases de escape.
-
Cantidad mínima de pedido1 unidad
-
TransporteTNT, UPS, DHL, Fedex, aire, mar
-
PaquetesCartón, caja de madera, plataforma, etc.
-
Tiempo de entregaNormalmente 2-3 días hábiles después del pago
-
Garantíaun año
-
Método de pagoBanco de la empresa, Western union, alibaba, Paypal, etc.
-
Nombre de la marcaSULAB
-
Número de modeloSe trata de un sistema de control de las emisiones de gases de escape.
-
Cantidad de orden mínima1
-
Tiempo de entrega2-3 días laborables
-
Condiciones de pagoD/P, T/T, Unión Occidental
Mitsubishi Electric IGBT Power Module CM300DY-24NF for Elevators with 1200V VCES and 300A Continuous Collector Current
CM300DY-24NF Dual Half-Bridge IGBT Power Module
Brand new imported original Mitsubishi Electric CM200DY-24H, CM200DY-24A, CM200DY-24NF, and CM300DY-24H power modules.
Product Overview
The CM300DY-24NF is a dual half-bridge IGBT power module from Mitsubishi Electric's NF series, engineered for high-power switching applications in industrial environments.
Key Specifications
- Voltage Rating: 1200V VCES
- Current Rating: 300A continuous collector current, 600A peak
- Saturation Voltage: ~2.5V @ 15V/300A
- Power Dissipation: 1130W maximum
- Isolation: 2500Vrms between main terminals and baseplate
- Mounting: M6 screw mounting
- Temperature Range: -40°C to 150°C junction temperature
Technical Features
Utilizing advanced trench-gate IGBT technology, this module delivers low switching loss and excellent anti-interference capabilities. The half-bridge topology simplifies circuit design while ensuring robust performance.
Ordering Information
| Brand | SULAB |
|---|---|
| Description | Elevator Module |
| Model | CM300DY-24NF |
| Minimum Order Quantity | 1PC |
| Shipping Methods | TNT, UPS, DHL, Fedex, Air, Sea |
| Packaging Options | Carton, Wooden case, Pallet etc |
| Delivery Time | Normally 2-3 working days after payment |
| Warranty | One year |
| Payment Methods | Company Bank, Western union, Alibaba, Paypal etc |
Applications
Widely used in elevator inverters, servo drives, UPS systems, and industrial power supplies. In elevator applications, it serves as the core component of the drive system.
Compatibility & Replacement
Directly replaceable with CM300DY-24A and CM300DY-24E models, ensuring high compatibility for maintenance and upgrade projects.
Maintenance Notes
Common failures include overcurrent burnout and thermal failure. Regular maintenance should include checks on heat dissipation systems, drive voltage stability, and load matching to ensure optimal performance and longevity.
